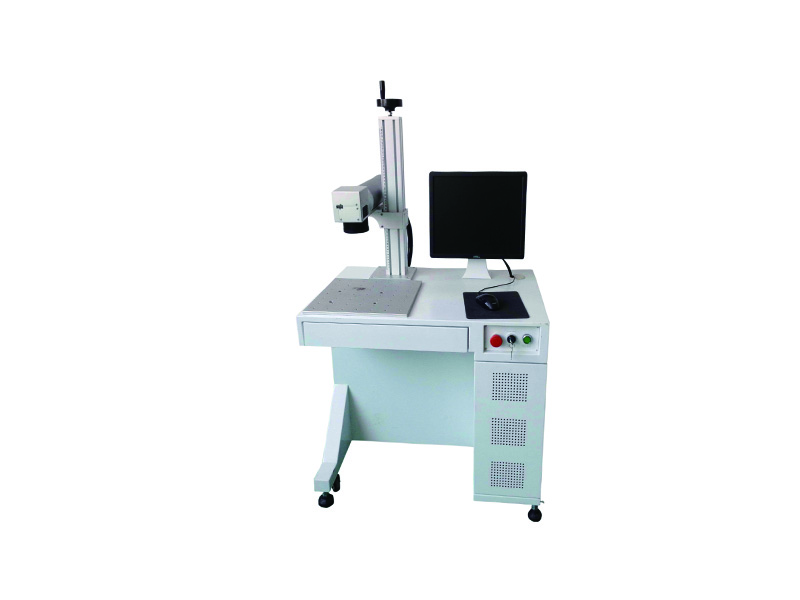

Pedestal Fiber Laser Marking Machine
SGF-II Series, the most popular laser marking machine! Long life, maintenance-free within 100,000hrs, continously operated in 24 hours.
Tel.: +86-21-6034 3841 (UTC+08:00, 9:00~17:00) / +86 136 0179 0660 (24*7 Hours)
E-mail: info@ambermont.com Fax: +86-21-6766 9623 (UTC+08:00, 9:00~17:00)
- Product Introduction
- Technical Parameters
- Samples Display
Product Introduction
With compact structure, the pedestal fiber laser marking machine has several models to satisfy various industries, help us to obtain wide support under the help of the amazing quality.
● Fast speed, high efficiency, stable output power, high reliability;
● Long life, maintenance-free within 100,000 hours, operated in 24 hours and severe working condition;
● High electro-optic conversion efficiency, little energy coupling loss, less consumption with just 0.5 kW/Hour;
● With high-quality fiber laser, mark all sorts of precise patterns according to clients' requirements and available for many industries;
● Fast speed, high efficiency, stable output power, high reliability;
● Long life, maintenance-free within 100,000 hours, operated in 24 hours and severe working condition;
● High electro-optic conversion efficiency, little energy coupling loss, less consumption with just 0.5 kW/Hour;
● With high-quality fiber laser, mark all sorts of precise patterns according to clients' requirements and available for many industries;
It is widely used in electronic components, hardware, electrical industry, daily consumer goods, sensors, auto parts, 3C electronics, crafts, precision apparatuses, gifts and ornaments, medical equipments, high-low-voltage appliances, bathroom accessories, battery industry, IT industry, etc.
Technical Parameters
| Models No. | SGF-II/10/20/30 | |||
|---|---|---|---|---|
| Optical Properties |
Rated Output Power |
10W |
20W |
30W |
| Laser Operating Mode | Q-switched pulsed fiber laser | |||
| Wavelength |
1064nm |
|||
| Output Power Tunability | 5~100% or 10~100% | |||
| Repetition Frequency Range | 20~60kHz or 20~80kHz | |||
|
Output Power Stability |
<5% or <3% |
|||
| Output Beam Diameter |
7±1mm |
|||
| Output Beam Quality（M2） |
<1.5 (after beam expander) |
<1.8 (after beam expander) |
||
| Max. Single Pulse Energy（mJ） |
0.5@20kHz |
1.0@20kHz |
1.0@30kHz |
|
| Cooling System |
Internal air cooling |
|||
| Scanner Properties | Max. Marking Speed |
≤15000mm/s |
||
| Repeatability | ±0.001mm | |||
| Min. Line Width | 0.03mm | |||
| Min. Character |
0.15mm |
|||
| Max. Marking Depth |
0.8mm |
1.0mm |
||
| Marking Characteristics | Pilot Laser | Red laser/650nm/5mW | ||
| Focal Distance | 160mm±2mm (standard&optional) | |||
| Marking Area |
110*110mm (standard&optional) |
|||
| System Properties |
Rated Power |
0.4kW |
0.6kW |
|
|
Power Supply |
AC 220V/50~60Hz |
|||
| Working Environment | 0~35°C, Humidity ≤90% | |||
Samples Display
