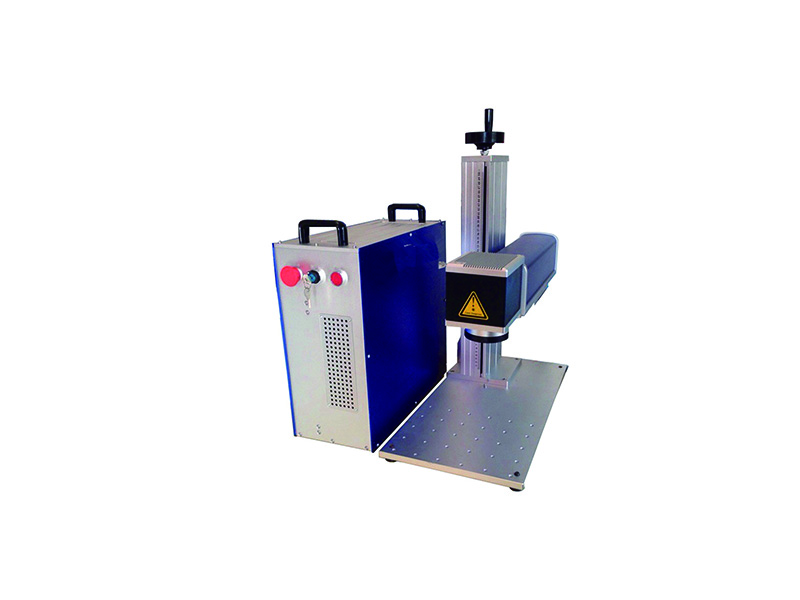

Portable Fiber Laser Marking Machine
SPF-II Series, portable! It's convenient to be moved by hands! High marking speed, excellent quality and high performance.
Tel.: +86-21-6034 3841 (UTC+08:00, 9:00~17:00) / +86 136 0179 0660 (24*7 Hours)
E-mail: info@ambermont.com Fax: +86-21-6766 9623 (UTC+08:00, 9:00~17:00)- Product Introduction
- Technical Parameters
- Samples Display
Product Introduction
The volume, its distinct advantage, is very small and convenient to be moved by hands. It has high marking speed, good quality and high performance advantages.
● Reasonable price, high performance;
● Fine marking effect, be able to mark all kinds of complicated patterns on very tiny surface;
● High electro-optic conversion efficiency, little energy coupling loss, less consumption, maintenance-free;
● Small measurement and convenient transportation meeting the requirement of changing processing sites;
● Reasonable price, high performance;
● Fine marking effect, be able to mark all kinds of complicated patterns on very tiny surface;
● High electro-optic conversion efficiency, little energy coupling loss, less consumption, maintenance-free;
● Small measurement and convenient transportation meeting the requirement of changing processing sites;
It is widely used in electronic components, hardware, electrical industry, daily consumer goods, sensors, auto parts, 3C electronics, crafts, precision apparatuses, gifts and ornaments, medical equipments, high-low-voltage appliances, bathroom accessories, battery industry, IT industry, etc.
Technical Parameters
Models No. | SPF-II/10/20/30 | |||
---|---|---|---|---|
Optical Properties |
Rated Output Power |
10W |
20W |
30W |
Laser Operating Mode | Q-switched pulsed fiber laser | |||
Wavelength |
1064nm |
|||
Output Power Tunability | 5~100% or 10~100% | |||
Repetition Frequency Range | 20~60kHz or 20~80kHz | |||
Output Power Stability |
<5% or <3% |
|||
Output Beam Diameter |
7±1mm |
|||
Output Beam Quality(M2) |
<1.5 (after beam expander) |
<1.8 (after beam expander) |
||
Max. Single Pulse Energy(mJ) |
0.5@20kHz |
1.0@20kHz |
1.0@30kHz |
|
Cooling System |
Internal air cooling |
|||
Scanner Properties | Max. Marking Speed |
≤15000mm/s |
||
Repeatability | ±0.001mm | |||
Min. Line Width | 0.03mm | |||
Min. Character |
0.15mm |
|||
Max. Marking Depth |
0.8mm |
1.0mm |
||
Marking Characteristics | Pilot Laser | Red laser/650nm/5mW | ||
Focal Distance | 160mm±2mm (standard&optional) | |||
Marking Area |
110*110mm (standard&optional) |
|||
System Properties |
Rated Power |
0.4kW |
0.6kW |
|
Power Supply |
AC 220V/50~60Hz |
|||
Working Environment | 0~35°C, Humidity ≤90% |
Samples Display
