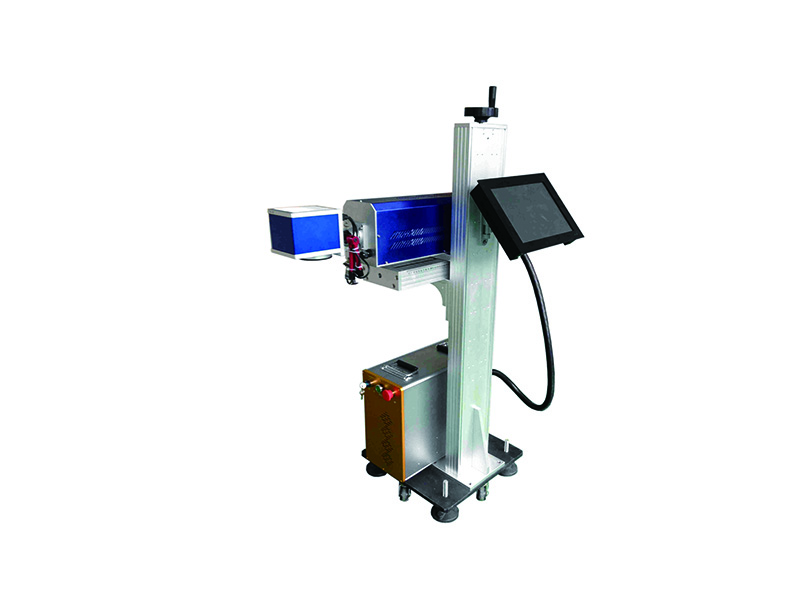

Online CO2 Laser Marking Machine
FCN-II Series, it's able to mark on fast moving products and conduct 24 hours continuous working in adverse environment, no consumables, maintenance-free.
Tel.: +86-21-6034 3841 (UTC+08:00, 9:00~17:00) / +86 136 0179 0660 (24*7 Hours)
E-mail: info@ambermont.com Fax: +86-21-6766 9623 (UTC+08:00, 9:00~17:00)
- Product Introduction
- Technical Parameters
- Samples Display
Product Introduction
Combine laser technology with production line, it can mark on fast moving products! It is mainly used in marking characters, figures, batch numbers, production dates, validity, LOGO, real time clock information and anti-counterfeiting, especially the pharmaceutical industries GMP and food industries HACCP.
● Flexible structure, fast speed, high security;
● High efficiency, high electro-optic conversion efficiency;
● Long life, easy operation, low running cost, operated in 24 hours;
● Powerful marking software, humanized operation interface, easy to be operated, without bothering for the operators altering;
● With open date interfaces, it can be used for our clients to communicate with logistics system through communications protocols;
● Flexible structure, fast speed, high security;
● High efficiency, high electro-optic conversion efficiency;
● Long life, easy operation, low running cost, operated in 24 hours;
● Powerful marking software, humanized operation interface, easy to be operated, without bothering for the operators altering;
● With open date interfaces, it can be used for our clients to communicate with logistics system through communications protocols;
It's suitable for all kinds of non-metallic materials marking, such as paper, PVC, rubber, wood, glass, ceramic, plastic, PET, HDPE, leather, etc. And it is widely used in packing boxes, packaging bags, films, food cans, glass bottles, drink bottles, HDPE bottles, cables, pipes and electronic components industries.
Technical Parameters
| Models No. | FCN-I/12/30 | ||
|---|---|---|---|
| Optical Properties |
Rated Output Power |
12W |
30W |
| Laser Operating Mode | RF CO2 laser | ||
| Wavelength |
1064nm |
||
| Repetition Frequency Range | 0~20kHz |
|
|
| Output Power Stability | 10% |
5% |
|
| Mode Quality |
TEM00 |
TEM00 (M2<1.2) |
|
| Output Beam Diameter |
3.5mm |
1.8mm |
|
| Beam Divergence |
4mrad |
7.5mrad |
|
| Polarization | 50:1 vertical linear | ||
| Cooling System | Internal air cooling | ||
| Scanner Properties | Max. Marking Speed |
≤8000mm/s |
|
| Repeatability | ±0.002mm | ||
| Min. Line Width | 0.1mm | ||
| Min. Character |
0.6mm |
||
| Max. Marking Depth |
0.8mm |
1.0mm |
|
| Marking Characteristics | Pilot Laser | Red laser/650nm/5mW | |
| Focal Distance | 160mm±2mm (standard&optional) | ||
| Marking Area | 110*110mm (standard&optional) | ||
| System Properties | Rated Power |
≤0.5kW |
|
| Power Supply |
AC 220V/50~60Hz |
||
| Working Environment | 0~35°C, Humidity ≤90% | ||
Samples Display
