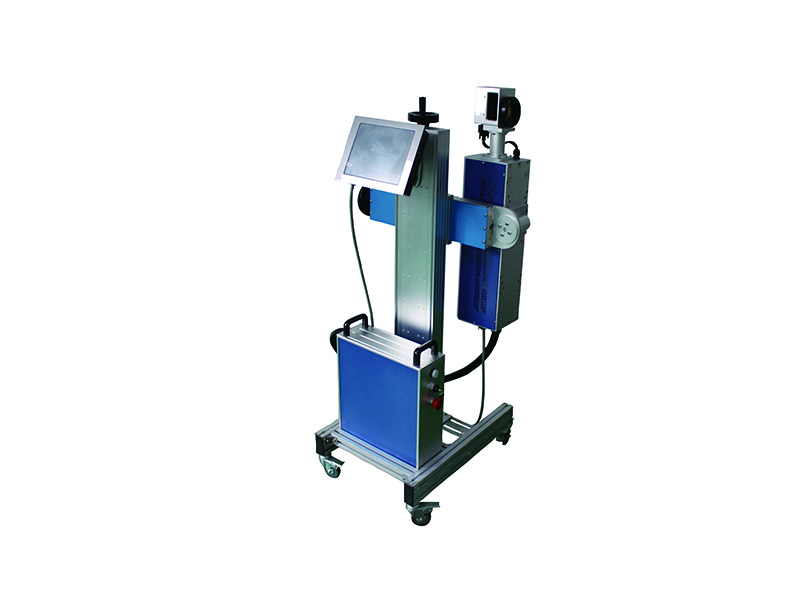

Online CO2 Laser Marking Machine

FCN-I Series, it's able to mark on fast moving products and conduct 24 hours continuous working in adverse environment, no consumables, maintenance-free.

Tel.: +86-21-6034 3841 (UTC+08:00, 9:00~17:00) / +86 136 0179 0660 (24*7 Hours)

E-mail: info@ambermont.com Fax: +86-21-6766 9623 (UTC+08:00, 9:00~17:00)

Product Introduction

Combine laser technology with production line, it can mark on fast moving products! It is mainly used in marking characters, figures, batch numbers, production dates, validity, LOGO, real time clock information and anti-counterfeiting, especially the pharmaceutical industries GMP and food industries HACCP.

Flexible structure, fast speed, high security;
High efficiency, high electro-optic conversion efficiency;
Long life, easy operation, low running cost, operated in 24 hours;
Powerful marking software, humanized operation interface, easy to be operated, without bothering for the operators altering;
With open date interfaces, it can be used for our clients to communicate with logistics system through communications protocols;

It's suitable for all kinds of non-metallic materials marking, such as paper, PVC, rubber, wood, glass, ceramic, plastic, PET, HDPE, leather, etc. And it is widely used in packing boxes, packaging bags, films, food cans, glass bottles, drink bottles, HDPE bottles, cables, pipes and electronic components industries.

Technical Parameters

Models No. FCN-I/12/30
Optical Properties Rated Output Power
Laser Operating Mode RF CO2 laser
Wavelength 1064nm
Repetition Frequency Range 0~20kHz
Output Power Stability 10% 5%
Mode Quality TEM00
TEM00 (M2<1.2)
Output Beam Diameter 3.5mm
Beam Divergence 4mrad
Polarization 50:1 vertical linear
Cooling System Internal air cooling
Scanner Properties Max. Marking Speed ≤8000mm/s
Repeatability ±0.002mm
Min. Line Width 0.1mm
Min. Character 0.6mm
Max. Marking Depth 0.8mm
Marking Characteristics Pilot Laser Red laser/650nm/5mW
Focal Distance 160mm±2mm (standard&optional)
Marking Area 110*110mm (standard&optional)
System Properties Rated Power ≤0.5kW
Power Supply AC 220V/50~60Hz
Working Environment 0~35°C, Humidity ≤90%
