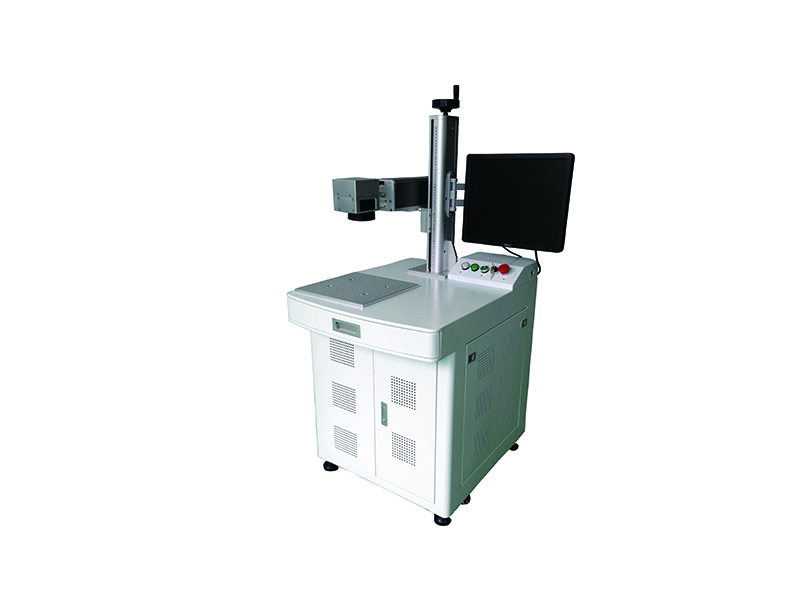

Pedestal Diode End-pump Laser Marking

SGE-I Series, the most advanced diode pump technique, short pulse, high quality laser beam, high peak power, exquisite marking, higher laser efficiency and more stable performance.

Tel.: +86-21-6034 3841 (UTC+08:00, 9:00~17:00) / +86 136 0179 0660 (24*7 Hours)

E-mail: info@ambermont.com Fax: +86-21-6766 9623 (UTC+08:00, 9:00~17:00)

Product Introduction

It has many advantages, such as short pulse, high quality laser beam, high peak power, exquisite marking, higher laser efficiency and more stable performance. It's not only suitable for metal marking, also for non-metal materials, such as ABS, Nylon, PES, PVE and so on. For some more sophisticated precision marking, it is particularly amazing, such as electronic components, plastic keyboard, integrated circuits (IC), electrical appliances, etc.

Innovative external cavity design, suitable for industrial production, strong anti-interference;
According to human body engineering mechanics, the desktop design improves work efficiency of operators;
Integrated optical bench, no optical axis variation caused by transportation and vibration, parts replacement without any adjustments;
Operated in 24 hours continuously and steadily in suitable temperature, complete processing orders efficiently and economically for customers;


It is widely used in electronic components, integrated circuits, hardware, auto parts, plastic products, precision apparatuses and many other fields.


Technical Parameters

Models No. SGE-I/08/10/15/30/40
Optical Properties Rated Output Power
8W
10W
15W
30W
40W
Laser Operating Mode Nd:YVO4 laser
Wavelength 1064nm
Repetition Frequency Range 1~40kHz 15~200kHz
Mode Quality(M2 TEM00 (M2≤1.2)
Output Beam Diameter ≤0.6mm
≤0.7mm
Pulse Width <20ns@20kHz
<15ns@20kHz
<20ns@20kHz
Beam Directivity <25μrad
Beam Stability ≤3%rms
Beam Divergence ≤1.5mrad
Polarization >100:1
Cooling System Internal air cooling or Water cooling
Scanner Properties Max. Marking Speed ≤15000mm/s
Repeatability ±0.002mm
Min. Line Width 0.05mm
Min. Character 0.17mm
Max. Marking Depth 0.8mm
1.0mm
Marking Characteristics Pilot Laser Red laser/650nm/5mW
Focal Distance 160mm±2mm (standard&optional)
Marking Area 110*110mm (standard&optional)
System Properties Rated Power 0.7kW
0.9kW
Power Supply AC 220V/50~60Hz
Working Environment 0~35°C, Humidity ≤90%
