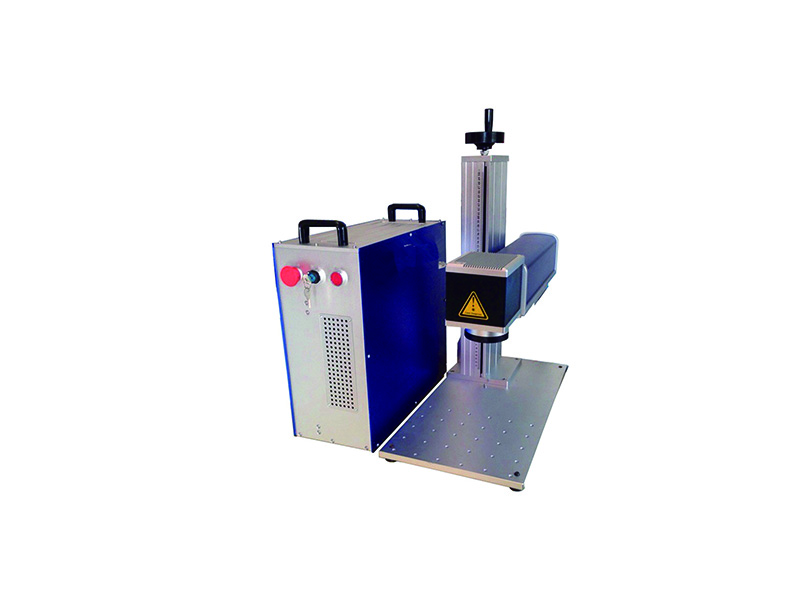

Portable Diode End-pump Laser Marking
SPE-II Series, compact construction! The most advanced diode pump technique, short pulse, high quality laser beam, high peak power, exquisite marking, higher laser efficiency.
Tel.: +86-21-6034 3841 (UTC+08:00, 9:00~17:00) / +86 136 0179 0660 (24*7 Hours)
E-mail: info@ambermont.com Fax: +86-21-6766 9623 (UTC+08:00, 9:00~17:00)
- Product Introduction
- Technical Parameters
- Samples Display
Product Introduction
It has many advantages, such as short pulse, high quality laser beam, high peak power, exquisite marking, higher laser efficiency and more stable performance. It’s not only suitable for metal marking, also for non-metal materials, such as ABS, Nylon, PES, PVE and so on. For some more sophisticated precision marking, it is particularly amazing, such as electronic components, plastic keyboard, integrated circuits (IC), electrical appliances, etc.
● Small measurement and convenient transportation;
● Integrated optical bench, no optical axis variation caused by transportation and vibration, parts replacement without any adjustments;
● Operated in 24 hours continuously and steadily in suitable temperature, complete processing orders efficiently and economically for customers;
● Small measurement and convenient transportation;
● Integrated optical bench, no optical axis variation caused by transportation and vibration, parts replacement without any adjustments;
● Operated in 24 hours continuously and steadily in suitable temperature, complete processing orders efficiently and economically for customers;
It is widely applied in electronic components, integrated circuits, hardware, Auto parts, plastic products, precision apparatuses and many other fields.
Technical Parameters
| Models No. | SPE-II/08/10/15/30/40 | |||||
|---|---|---|---|---|---|---|
| Optical Properties |
Rated Output Power |
8W |
10W |
15W |
30W |
40W |
| Laser Operating Mode | Nd:YVO4 laser | |||||
| Wavelength |
1064nm |
|||||
| Repetition Frequency Range | 1~40kHz | 15~200kHz | ||||
| Mode Quality（M2） | TEM00 (M2≤1.2) | |||||
| Output Beam Diameter |
≤0.6mm |
≤0.7mm |
||||
| Pulse Width |
<20ns@20kHz |
<15ns@20kHz |
<20ns@20kHz |
|||
| Beam Directivity |
<25μrad |
|||||
| Beam Stability |
≤3%rms |
|||||
| Beam Divergence |
≤1.5mrad |
|||||
| Polarization |
>100:1 |
|||||
| Cooling System | Internal air cooling or Water cooling | |||||
| Scanner Properties | Max. Marking Speed |
≤15000mm/s |
||||
| Repeatability | ±0.002mm | |||||
| Min. Line Width | 0.05mm | |||||
| Min. Character |
0.17mm |
|||||
| Max. Marking Depth |
0.8mm |
1.0mm |
||||
| Marking Characteristics | Pilot Laser | Red laser/650nm/5mW | ||||
| Focal Distance | 160mm±2mm (standard&optional) | |||||
| Marking Area | 110*110mm (standard&optional) | |||||
| System Properties | Rated Power |
0.7kW |
0.9kW |
|||
| Power Supply |
AC 220V/50~60Hz |
|||||
| Working Environment | 0~35°C, Humidity ≤90% | |||||
Samples Display
