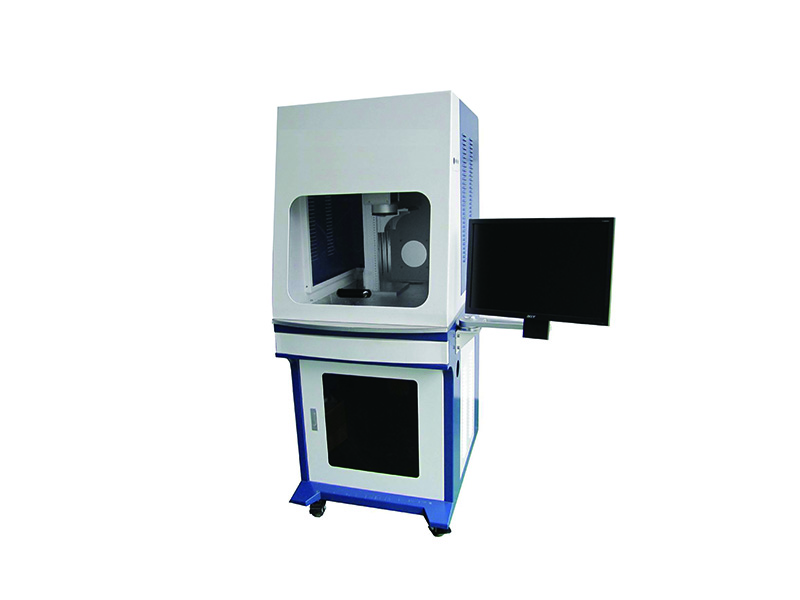

UV Laser Marking Machine
SGU-II Series, UV laser spot is extreme small so that its heating affect can be ignored, it can be used for ultra precision marking & special materials marking.
Tel.: +86-21-6034 3841 (UTC+08:00, 9:00~17:00) / +86 136 0179 0660 (24*7 Hours)
E-mail: info@ambermont.com Fax: +86-21-6766 9623 (UTC+08:00, 9:00~17:00)
- Product Introduction
- Technical Parameters
- Samples Display
Product Introduction
UV laser spot is extreme small so that its heating affect can be ignored, it can be used for ultra precision marking & special materials marking. It's particularly suitable for food, pharmaceuticals, packaging materials marking, silicon wafer for complex graphics cutting and so on.
● Equipped with safety hood, it avoids physical injury of operators accidentally;
● Rotary device shortens unit processing time, exponentially improve the marking efficiency;
● Heating affect can be ignored, it can be used for ultra precision marking & special materials marking;
● High-performance ultraviolet laser and superior laser beam quality bring exquisite marking for our clients;
● Equipped with safety hood, it avoids physical injury of operators accidentally;
● Rotary device shortens unit processing time, exponentially improve the marking efficiency;
● Heating affect can be ignored, it can be used for ultra precision marking & special materials marking;
● High-performance ultraviolet laser and superior laser beam quality bring exquisite marking for our clients;
It's widely used in special materials marking, cutting and processing, such as all kinds of glass, LCD panel, textiles, chip ceramics, semiconductor wafers, IC grains, sapphires, polymer films, etc.
Technical Parameters
| Models No. | SGU-II/03/05/10 | |||
|---|---|---|---|---|
| Optical Properties |
Rated Output Power |
3W |
5W |
10W |
| Laser Operating Mode | Nd:YVO4 UV laser | |||
| Wavelength | 355nm | |||
| Repetition Frequency Range | 20~200kHz | |||
| Mode Quality (M2) | TEM00 (M2≤1.2) | |||
| Output Beam Diameter | ≤7mm | |||
| Pulse Width |
<15Ns@40kHz |
|||
| Beam Directivity | <25μrad | |||
| Beam Stability | ≤3%rms | |||
| Beam Divergence | ≤2mrad | |||
| Polarization | >100:1 horizonal linear | |||
| Cooling System | Internal air cooling or Water cooling | |||
| Scanner Properties | Max. Marking Speed |
≤15000mm/s |
||
| Repeatability | ±0.001mm | |||
| Min. Line Width | 0.03mm | |||
| Min. Character |
0.15mm |
|||
| Max. Marking Depth |
0.8mm |
1.0mm |
||
| Marking Characteristics | Pilot Laser | Red laser/650nm/5mW | ||
| Focal Distance | 160mm±2mm (standard&optional) | |||
| Marking Area |
110*110mm (standard&optional) |
|||
| System Properties |
Rated Power |
0.4kW |
0.6kW |
|
|
Power Supply |
AC 220V/50~60Hz |
|||
| Working Environment | 0~35°C, Humidity ≤90% | |||

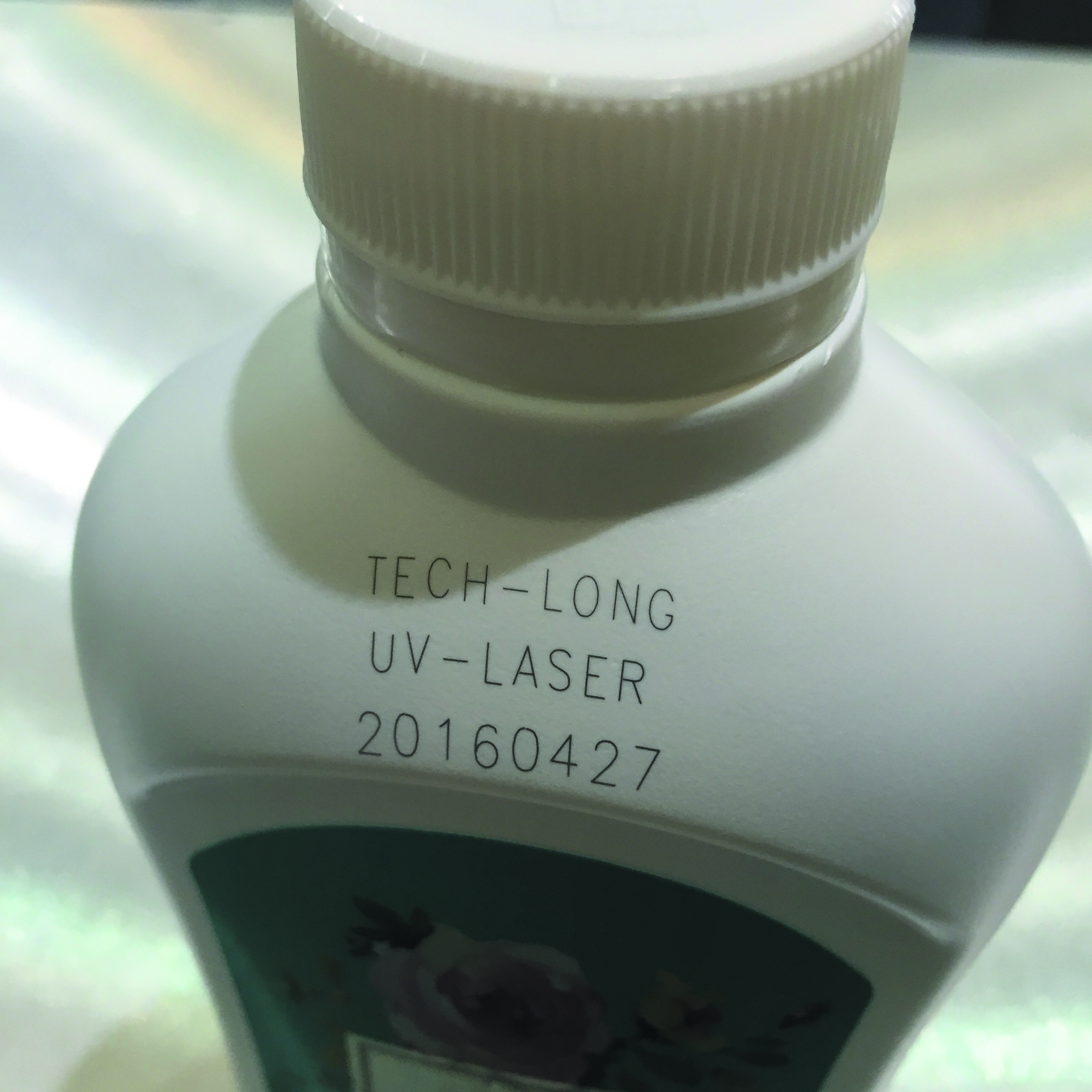

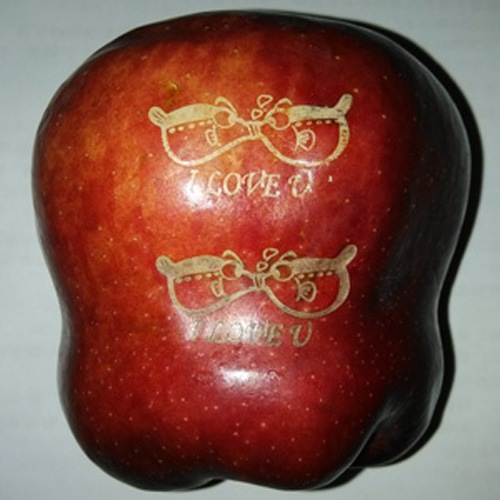

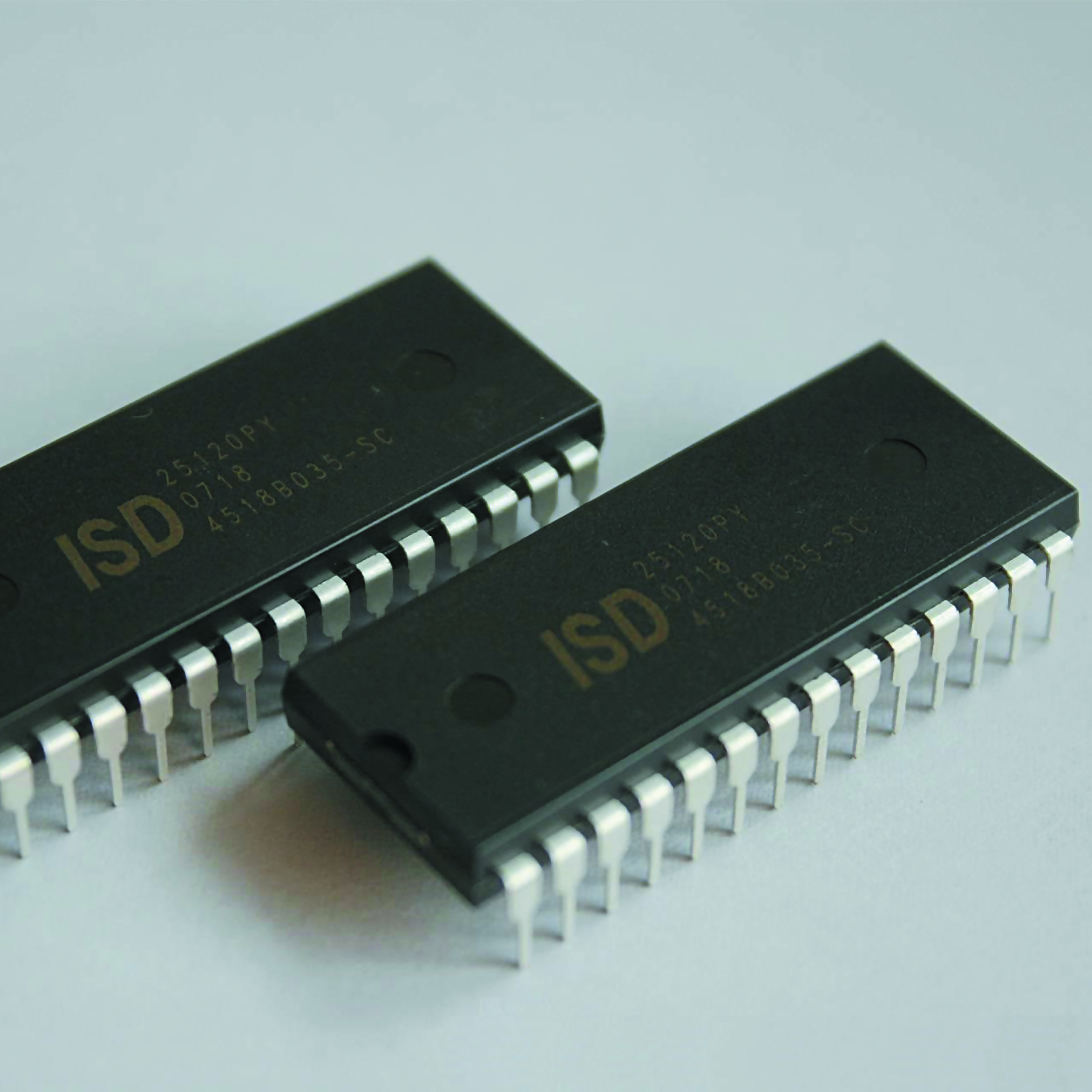

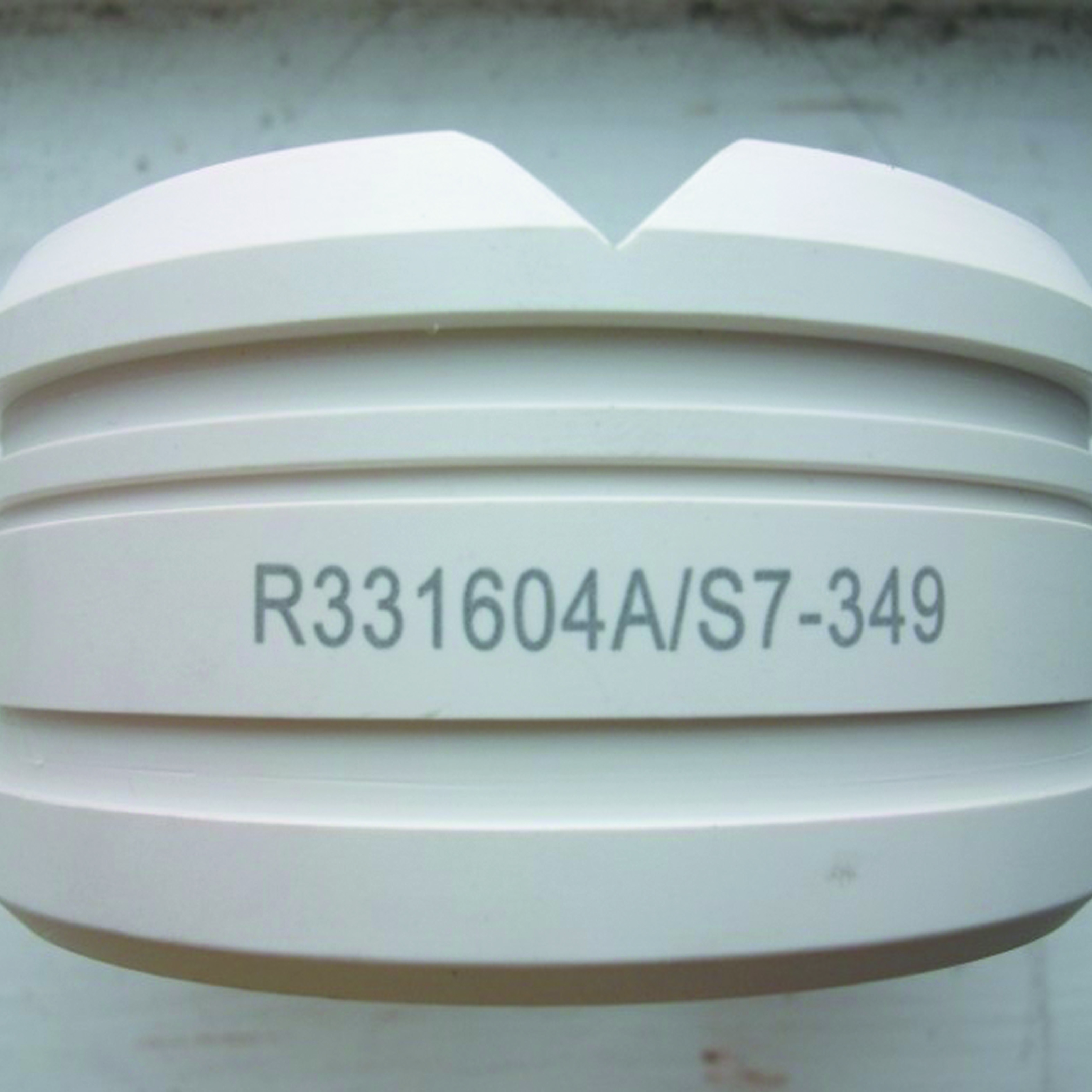

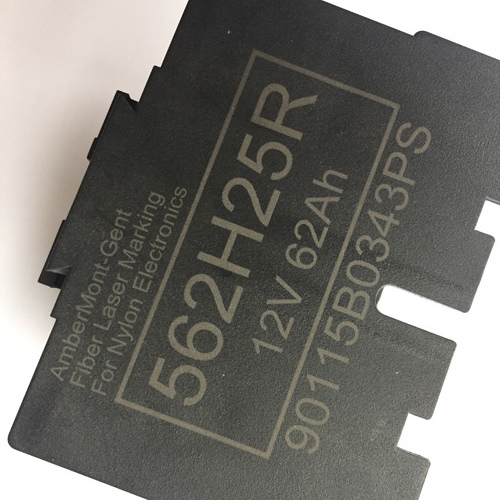

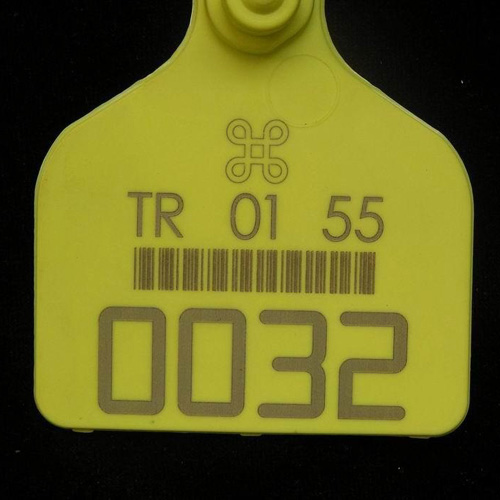

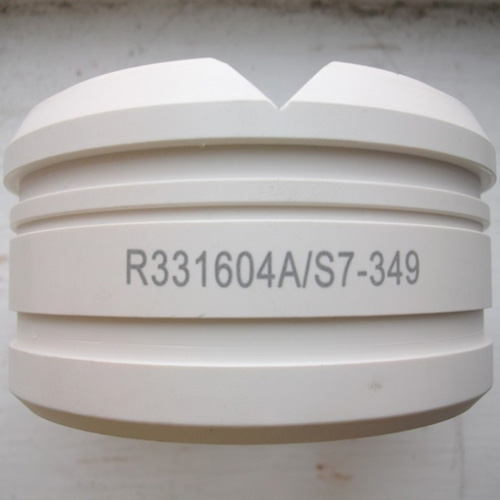

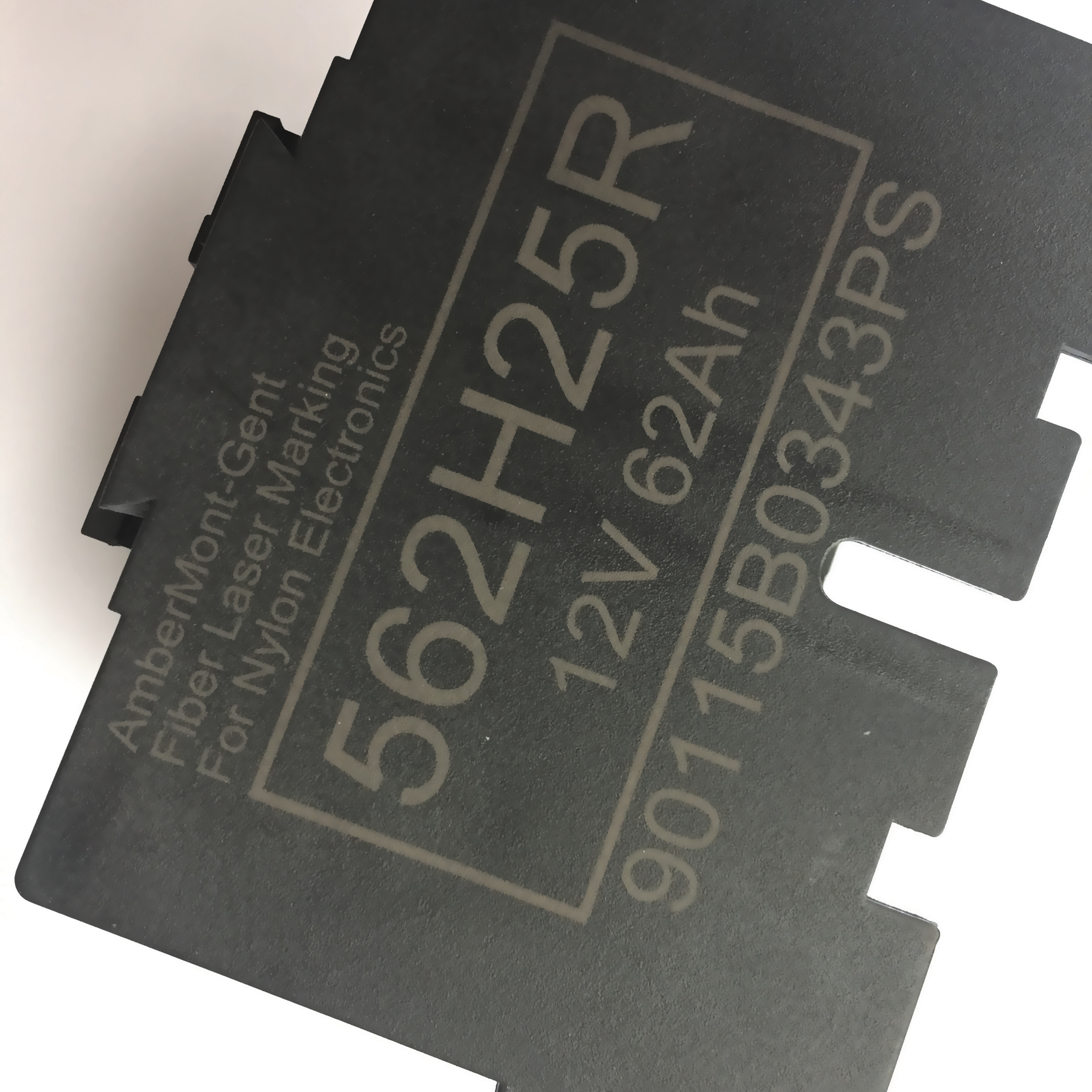

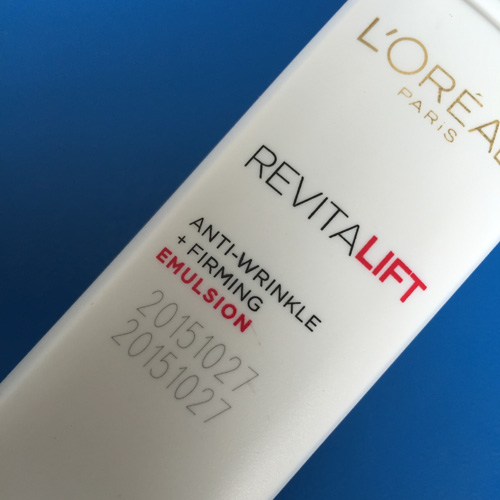

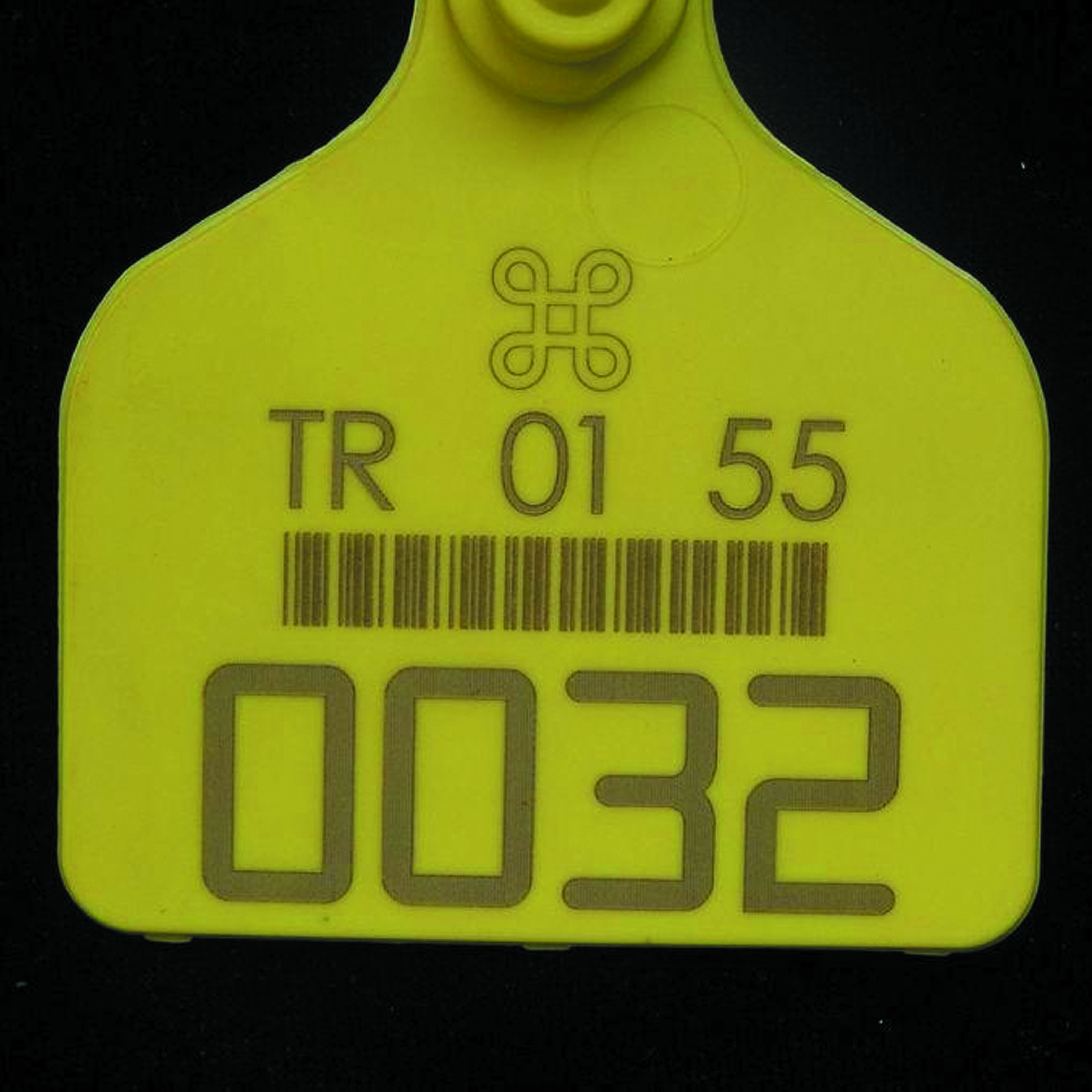

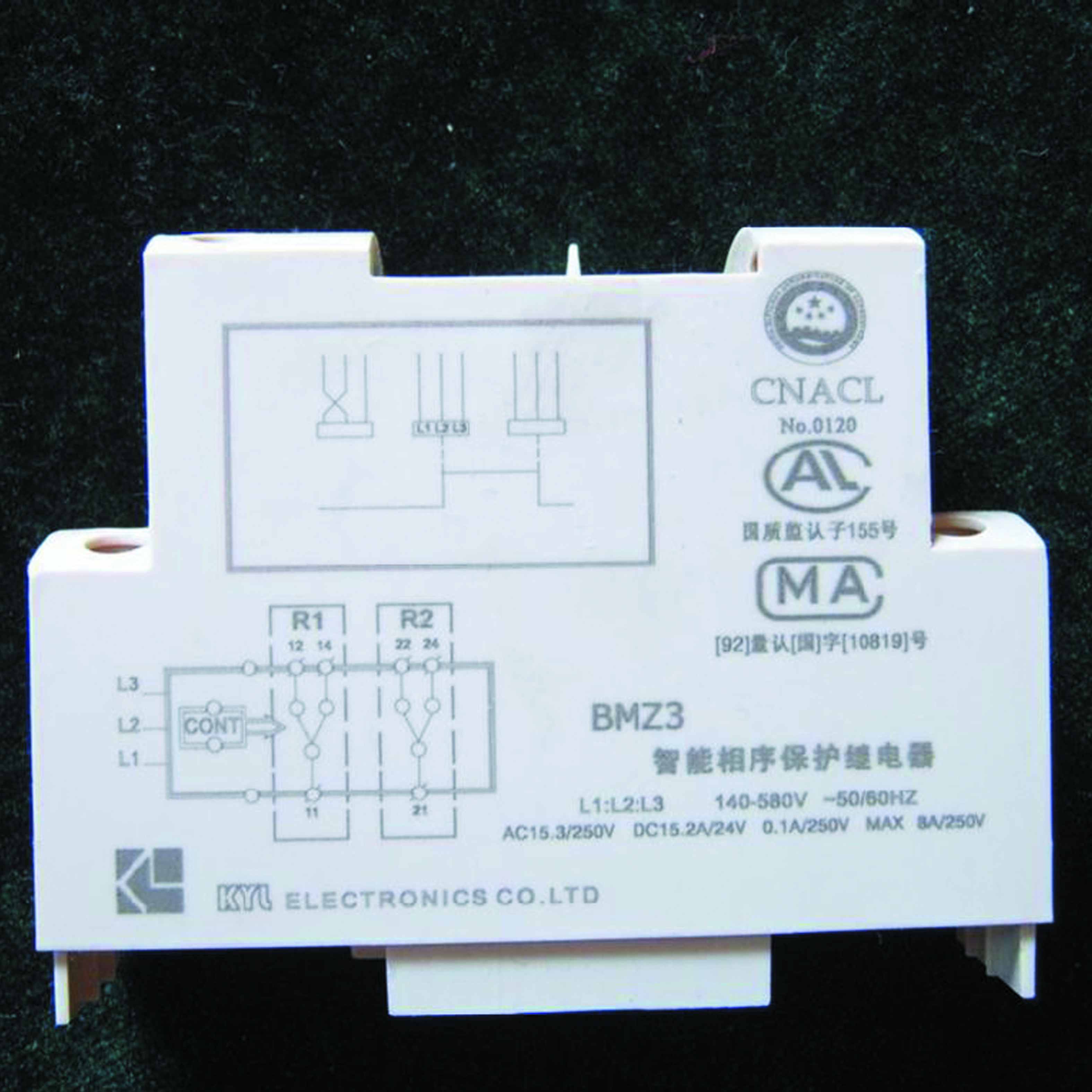

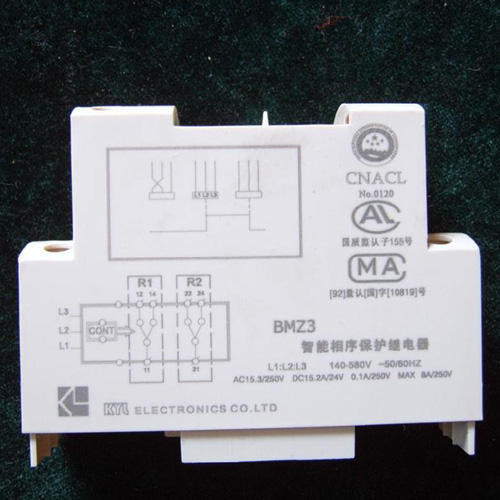

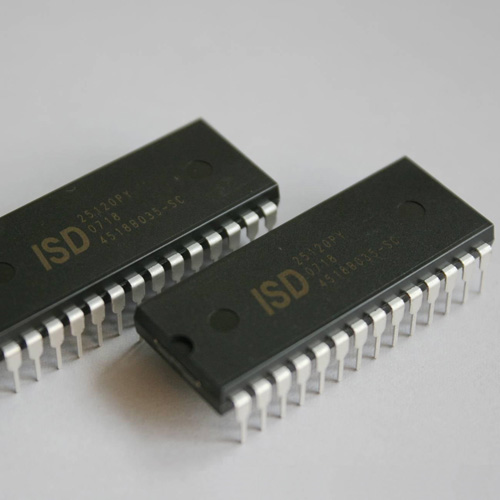

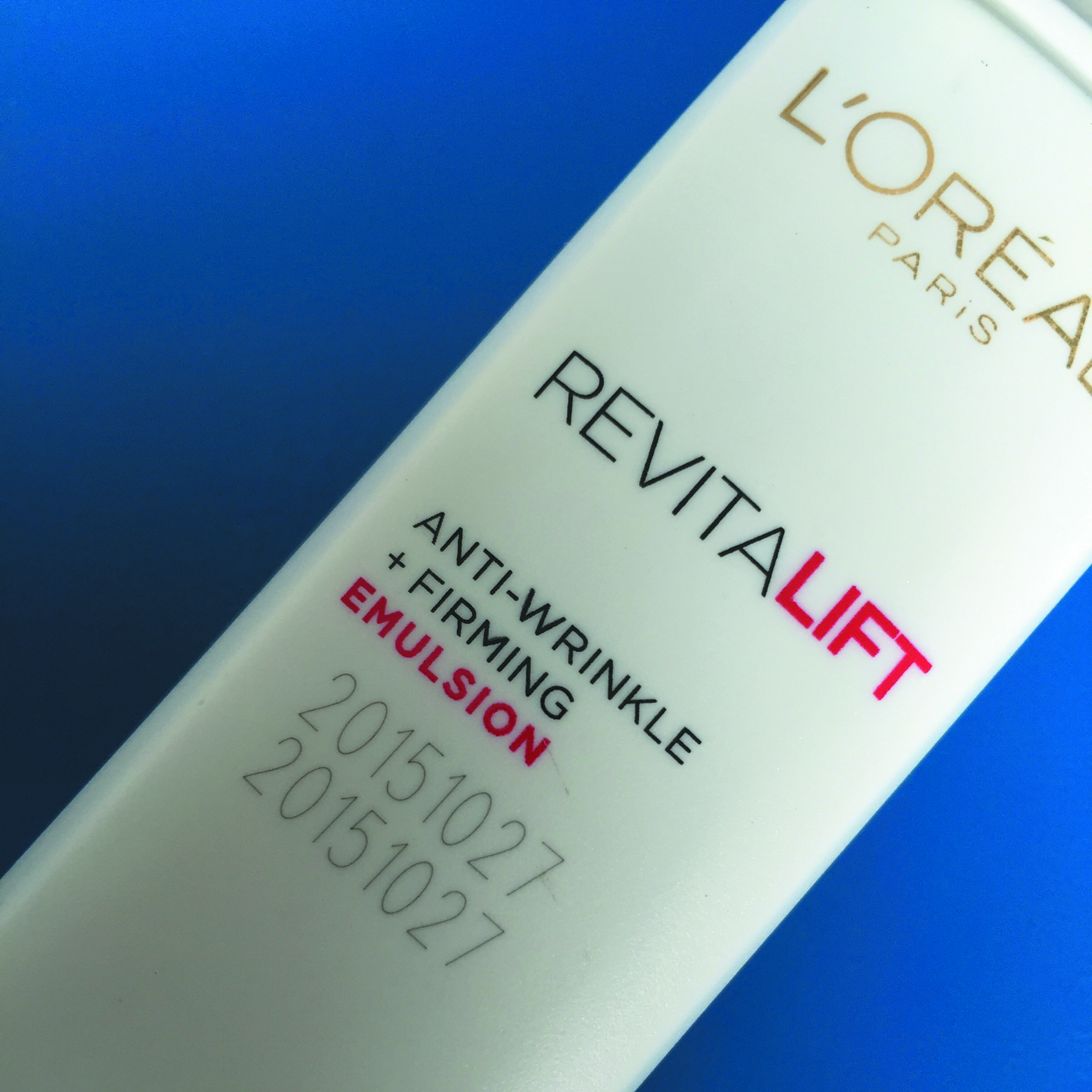

Samples Display
