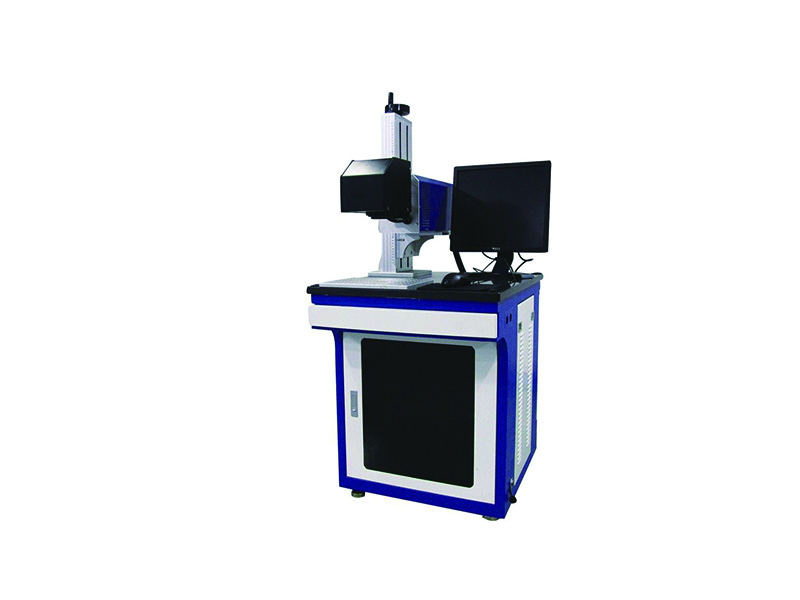

Pedestal CO2 Laser Marking Machine
SGC-I Series, the most popular laser marking machine! Long life, maintenance-free within 20,000 hours, continously operated in 24 hours and severe working environment.
Tel.: +86-21-6034 3841 (UTC+08:00, 9:00~17:00) / +86 136 0179 0660 (24*7 Hours)
E-mail: info@ambermont.com Fax: +86-21-6766 9623 (UTC+08:00, 9:00~17:00)
- Product Introduction
- Technical Parameters
- Samples Display
Product Introduction
it's one of the most popular laser marking machines in domestic and overseas markets, integrates advanced galvanometer laser marking technology with imported well-known RF metal-sealed CO2 laser, that makes it more amazing for non-metal materials marking.
● Long life, operated in 24 hours, long maintenance-free;
● According to human body engineering mechanics, it improves work efficiency of operators;
● Powerful marking software, humanized operation interface, easy to be operated, without bothering for the operators altering;
● Long life, operated in 24 hours, long maintenance-free;
● According to human body engineering mechanics, it improves work efficiency of operators;
● Powerful marking software, humanized operation interface, easy to be operated, without bothering for the operators altering;
It is used in all kinds of non-metallic materials marking, such as clothing accessories, leather, food beverage packaging, electronic components, crafts, glass stone processing, paper packaging, plastic products, labels, leather fabrics, glass ceramic, resin plastics, wood products, PCB, etc.
Technical Parameters
| Models No. | SGC-I/12/30 | ||
|---|---|---|---|
| Optical Properties |
Rated Output Power |
12W |
30W |
| Laser Operating Mode | RF CO2 laser | ||
| Wavelength |
1064nm |
||
| Repetition Frequency Range | 0~20kHz |
|
|
| Output Power Stability | 10% |
5% |
|
| Mode Quality |
TEM00 |
TEM00 (M2<1.2) |
|
| Output Beam Diameter |
3.5mm |
1.8mm |
|
| Beam Divergence |
4mrad |
7.5mrad |
|
| Polarization | 50:1 vertical linear | ||
| Cooling System | Internal air cooling | ||
| Scanner Properties | Max. Marking Speed |
≤8000mm/s |
|
| Repeatability | ±0.002mm | ||
| Min. Line Width | 0.1mm | ||
| Min. Character |
0.6mm |
||
| Max. Marking Depth |
0.8mm |
1.0mm |
|
| Marking Characteristics | Pilot Laser | Red laser/650nm/5mW | |
| Focal Distance | 160mm±2mm (standard&optional) | ||
| Marking Area | 110*110mm (standard&optional) | ||
| System Properties | Rated Power |
≤0.5kW |
|
| Power Supply |
AC 220V/50~60Hz |
||
| Working Environment | 0~35°C, Humidity ≤90% | ||
Samples Display
