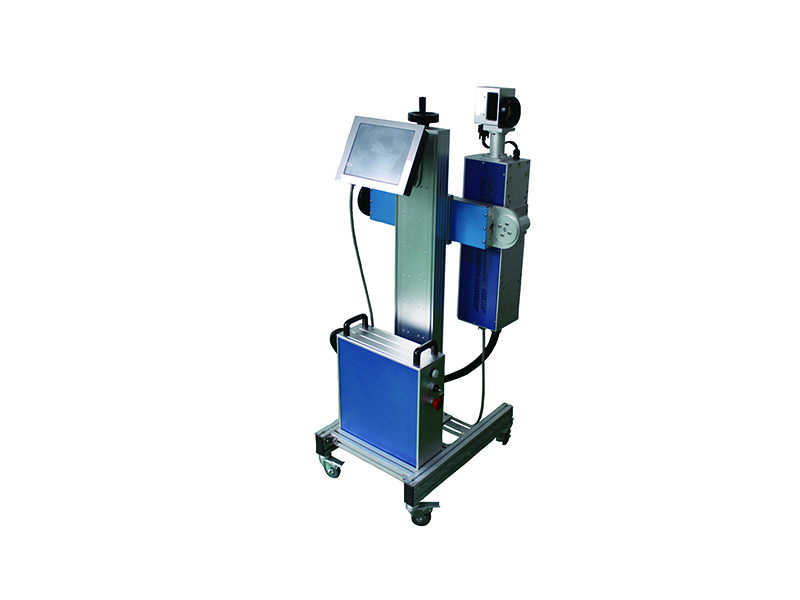

Online Fiber Laser Marking Machine
FFN-I Series, it's able to mark on fast moving products and conduct 24 hours continuous working in adverse environment, no consumables, maintenance-free.
Tel.: +86-21-6034 3841 (UTC+08:00, 9:00~17:00) / +86 136 0179 0660 (24*7 Hours)
E-mail: info@ambermont.com Fax: +86-21-6766 9623 (UTC+08:00, 9:00~17:00)
- Product Introduction
- Technical Parameters
- Samples Display
Product Introduction
It's able to mark dot matrix or scribbling laser encoding with high quality on fast moving products and meet the demands of all kinds of assembly lines.
● Small volume, the professional stand can be installed on the assembly line, easy adjustment;
● Friendly man-machine dialogue interface, easy operation, without bothering for the operators altering;
● High electro-optic conversion efficiency, less consumption, long life, save a lot of processing costs for our clients;
● With open date interfaces, it can be used for our clients to communicate with logistics system through communications protocols;
● Professional industrial laser, faster marking speed and consistent marking, high reliability, operated continuously in 24 hours, meet the demands of mass processing and production;
● Small volume, the professional stand can be installed on the assembly line, easy adjustment;
● Friendly man-machine dialogue interface, easy operation, without bothering for the operators altering;
● High electro-optic conversion efficiency, less consumption, long life, save a lot of processing costs for our clients;
● With open date interfaces, it can be used for our clients to communicate with logistics system through communications protocols;
● Professional industrial laser, faster marking speed and consistent marking, high reliability, operated continuously in 24 hours, meet the demands of mass processing and production;
It's widely used in packaging industry, such as anti-counterfeiting laser marking in pharmaceutical industry, anti-counterfeiting traceability system in alcohol industry, anti-counterfeiting marking in food, drink and tobacco, daily hygiene products marking, smart card information marking and pipe online marking.
Technical Parameters
| Models No. | FFN-I/10/20/30 | |||
|---|---|---|---|---|
| Optical Properties |
Rated Output Power |
10W |
20W |
30W |
| Laser Operating Mode | Q-switched pulsed fiber laser | |||
| Wavelength |
1064nm |
|||
| Output Power Tunability | 5~100% or 10~100% | |||
| Repetition Frequency Range | 20~60kHz or 20~80kHz | |||
|
Output Power Stability |
<5% or <3% |
|||
| Output Beam Diameter |
7±1mm |
|||
| Output Beam Quality（M2） |
<1.5 (after beam expander) |
<1.8 (after beam expander) |
||
| Max. Single Pulse Energy（mJ） |
0.5@20kHz |
1.0@20kHz |
1.0@30kHz |
|
| Cooling System |
Internal air cooling |
|||
| Scanner Properties | Max. Marking Speed |
≤15000mm/s |
||
| Repeatability | ±0.001mm | |||
| Min. Line Width | 0.03mm | |||
| Min. Character |
0.15mm |
|||
| Max. Marking Depth |
0.8mm |
1.0mm |
||
| Marking Characteristics | Pilot Laser | Red laser/650nm/5mW | ||
| Focal Distance | 160mm±2mm (standard&optional) | |||
| Marking Area |
110*110mm (standard&optional) |
|||
| System Properties |
Rated Power |
0.4kW |
0.6kW |
|
|
Power Supply |
AC 220V/50~60Hz |
|||
| Working Environment | 0~35°C, Humidity ≤90% | |||
Samples Display
