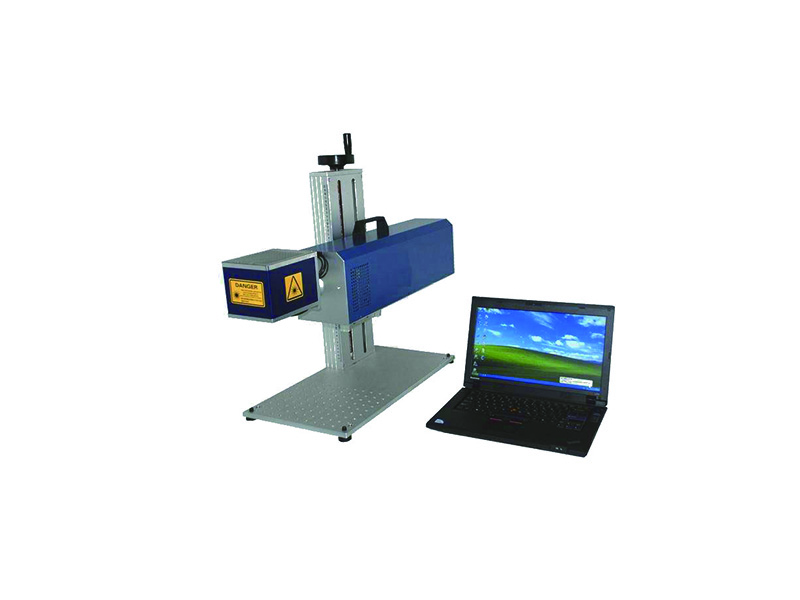

Portable CO2 Laser Marking Machine
SPC-I Series, portable! It's convenient to be moved by hands! High marking speed, excellent quality and high performance.
Tel.: +86-21-6034 3841 (UTC+08:00, 9:00~17:00) / +86 136 0179 0660 (24*7 Hours)
E-mail: info@ambermont.com Fax: +86-21-6766 9623 (UTC+08:00, 9:00~17:00)
- Product Introduction
- Technical Parameters
- Samples Display
Product Introduction
The volume, its distinct advantage, is very small and convenient to be moved by hands! With high-speed galvanometer, the marking speed is 30% faster than our competitors'.
● Long life, operated in 24 hours, long maintenance-free;
● Integrated design, compact structure, small occupied area, easy to move and install;
● With high-speed galvanometer and 16-bit PCI cards, the marking speed is 30% faster than similar products;
● Powerful marking software, humanized operation interface, easy to operate, without bothering for the operators altering;
● Long life, operated in 24 hours, long maintenance-free;
● Integrated design, compact structure, small occupied area, easy to move and install;
● With high-speed galvanometer and 16-bit PCI cards, the marking speed is 30% faster than similar products;
● Powerful marking software, humanized operation interface, easy to operate, without bothering for the operators altering;
It is used in all kinds of non-metallic materials marking, such as clothing accessories, leather, food beverage packaging, electronic components, crafts, glass stone processing, paper packaging, plastic products, labels, leather fabrics, glass ceramic, resin plastics, wood products, PCB, etc.
Technical Parameters
| Models No. | SPC-I/12 | |
|---|---|---|
| Optical Properties |
Rated Output Power |
12W |
| Laser Operating Mode | RF CO2 laser | |
| Wavelength |
1064nm |
|
| Repetition Frequency Range | 0~20kHz | |
| Output Power Stability | 10% | |
| Mode Quality |
TEM00 |
|
| Output Beam Diameter |
3.5mm |
|
| Beam Divergence |
4mrad |
|
| Polarization |
50:1 vertical linear |
|
| Cooling System |
Internal air cooling |
|
| Scanner Properties | Max. Marking Speed |
≤8000mm/s |
| Repeatability | ±0.002mm | |
| Min. Line Width | 0.1mm | |
| Min. Character |
0.6mm |
|
| Max. Marking Depth |
0.8mm |
|
| Marking Characteristics | Pilot Laser | Red laser/650nm/5mW |
| Focal Distance | 160mm±2mm (standard&optional) | |
| Marking Area | 110*110mm (standard&optional) | |
| System Properties | Rated Power |
≤0.5kW |
| Power Supply |
AC 220V/50~60Hz |
|
| Working Environment | 0~35°C, Humidity ≤90% | |
Samples Display
