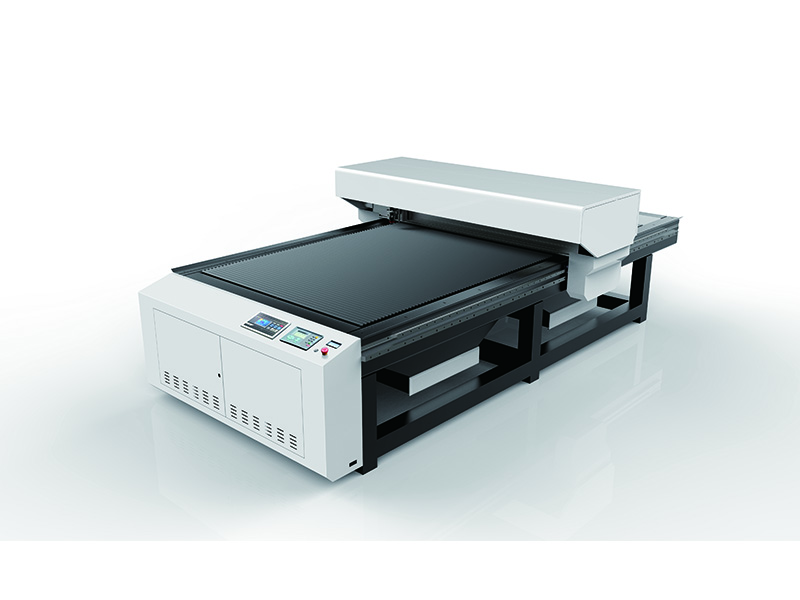

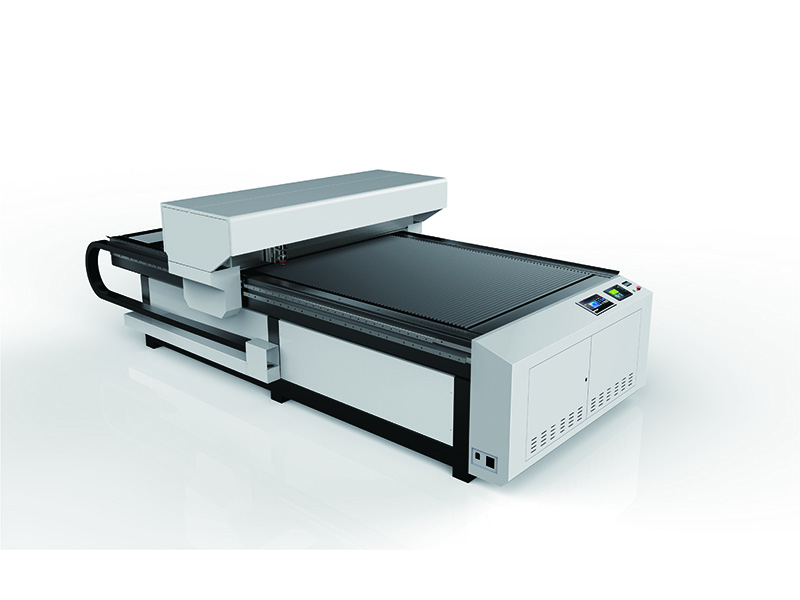

Metal&Non-Metal Laser Cutting Machine
CMA Series, it represents the world-class level in terms of stability, high precision and efficiency. It adopts the international advanced DPS digital-control technology and closed-loop motion control...
Tel.: +86-21-6034 3841 (UTC+08:00, 9:00~17:00) / +86 136 0179 0660 (24*7 Hours)
E-mail: info@ambermont.com Fax: +86-21-6766 9623 (UTC+08:00, 9:00~17:00)
- Product Introduction
- Technical Parameters
- Samples Display
Product Introduction
It represents the world-class level in terms of stability, high precision and efficiency. It adopts the international advanced DPS digital-control technology and closed-loop motion control system to improve working precision and stability. Due to its high quality and outstanding performance, metal & non-metal laser cutting machine sells very well around the world.
● 150w/260w high quality CO2 laser tube;
● Maintenance-free within 8,000~10,000 hours, operated in 24 hours and severe working condition;
● Auto height adjust system is able to track the metal surface and adjust the height itself, ensure high precise cutting;
● Special metal cutting non-touch following system ensure the same cutting quality on the whole working bench, high efficiency, long lifetime and best stability;
● Adopts gantry-motion structure, linear guide, double driving transmission, Panasonic servo motor, vacuum system (both sides), etc. High precision rack and pinion, smooth transmission, fast acceleration and high locating accuracy;
● 150w/260w high quality CO2 laser tube;
● Maintenance-free within 8,000~10,000 hours, operated in 24 hours and severe working condition;
● Auto height adjust system is able to track the metal surface and adjust the height itself, ensure high precise cutting;
● Special metal cutting non-touch following system ensure the same cutting quality on the whole working bench, high efficiency, long lifetime and best stability;
● Adopts gantry-motion structure, linear guide, double driving transmission, Panasonic servo motor, vacuum system (both sides), etc. High precision rack and pinion, smooth transmission, fast acceleration and high locating accuracy;
It's widely suitable for both metal & non-metal materials, such as carbon steel, stainless steel, acrylic, ABS, PVC, wood, glass, ceramic, plastic, leather, etc. It is widely used in advertisement, garment industries, architecture, package, etc.
Technical Parameters
| Models No. | CMA 1325M |
|---|---|
| Laser Operating Mode | CO2 laser tube |
| Laser Rated Power | 150W/260W |
| Wavelength | 1064nm |
| Processing Area | 1300*2500mm |
| X Axis Stoke | 1300mm |
| Y Axis Stoke | 2500mm |
| Z Axis Stoke | 80mm |
| X/Y Axis Max. Cutting Speed | 60mm/s |
| X/Y Axis Repeat Positioning Accuracy | ±0.05mm |
| Graphic Format Supported | .ai, .dxf, .plt, .bmp, .dst, etc |
| Compatible Software | CorelDraw, Photoshop, AutoCAD, etc |
| Transmission | High precision rack & pinion driving system |
| Available Gas | O2 (Oxygen) |
| Cooling System | Water cooling |
| Rated Power | <1.5kW |
| Power Supply | 220V/50Hz |
| Total Weight | 1000KGS |
| Dimension (l*w*h) | 3500*2000*990mm |
| Working Environment | 0~45。C, Humidity 5-95%, free of condensed water |
Samples Display
