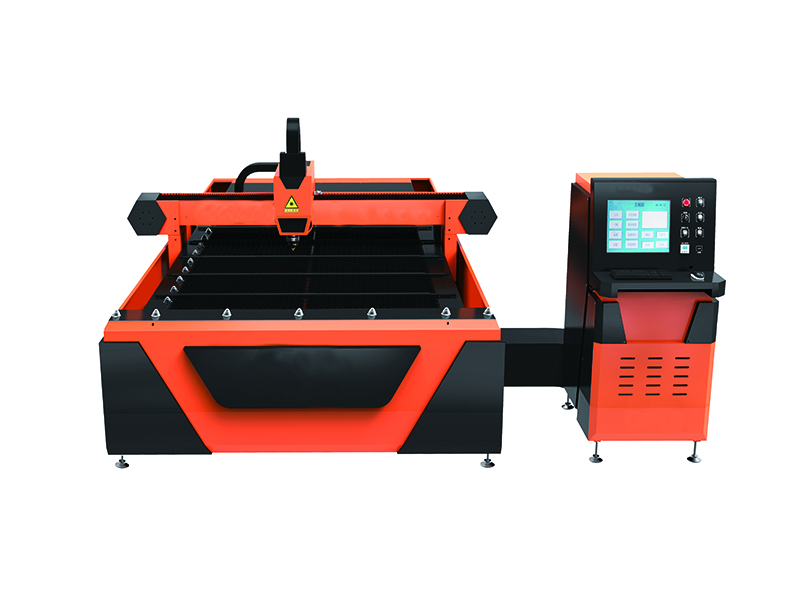

Fiber Laser Cutting Machine
FBA Series, integrating laser technology, machinery manufacturing and CNC technology, etc. Adopts gantry-motion structure, high precise ball screw driving system, AC servo motor and drives, vacuum sys...
Tel.: +86-21-6034 3841 (UTC+08:00, 9:00~17:00) / +86 136 0179 0660 (24*7 Hours)
E-mail: info@ambermont.com Fax: +86-21-6766 9623 (UTC+08:00, 9:00~17:00)
- Product Introduction
- Technical Parameters
- Samples Display
Product Introduction
Integrating laser technology, machinery manufacturing and CNC technology, etc. FA series fiber laser cutting machine, adopts gantry-motion structure, high precise ball screw driving system, AC servo motor and drives, vacuum system (both sides), etc.
● Professional laser cutting operation system with multi-language user interface , which greatly facilitates the operation;
● The whole frame, 600℃ heat treatment, 24 hours furnace cooling, 12 meter milling machine processing, ensure 20 years' working without any deformation;
● Apply the most mature laser cutting technology, reliable performance, fast response and maintenance free, qualified for ultra-high precision processing requirements;
● Adopts gantry-motion structure, linear guide, high precision ball screw driving transmission, AC servo motor and drives, vacuum system (both sides), etc. Smooth transmission, fast acceleration and high locating accuracy;
● Professional laser cutting operation system with multi-language user interface , which greatly facilitates the operation;
● The whole frame, 600℃ heat treatment, 24 hours furnace cooling, 12 meter milling machine processing, ensure 20 years' working without any deformation;
● Apply the most mature laser cutting technology, reliable performance, fast response and maintenance free, qualified for ultra-high precision processing requirements;
● Adopts gantry-motion structure, linear guide, high precision ball screw driving transmission, AC servo motor and drives, vacuum system (both sides), etc. Smooth transmission, fast acceleration and high locating accuracy;
It's specially used for cutting 0.5~6mm carbon steel, 0.5~5mm stainless steel, galvanized steel, electrolytic zinc-coated steel, silicon steel, 0.5~3mm aluminium alloy, 0.5~2mm brass and other kinds of thin metal sheets.
Technical Parameters
| Models No. | FBA 3015 |
|---|---|
| Laser Rated Power | 300W/500W/700W |
| Wavelength | 1064nm |
| Processing Area | 1500*3000mm |
| X Axis Stoke | 1505mm |
| Y Axis Stoke | 3015mm |
| Z Axis Stoke | 200mm |
| X/Y Axis Max. Linked Speed | 33m/min |
| Max. Acceleration | 0.3G |
| X/Y Axis Positioning Accuracy | ±0.05mm |
| X/Y Axis Repeat Positioning Accuracy | ±0.03mm |
| Max. Workbench Load | 500KGS |
| Transmission | High-precision ball screw driving system |
| Rated Power | <12kW |
| Power Supply | 380V/50Hz |
| Total Weight | 3600KGS |
| Dimension (l*w*h) | 4915*2540*1700mm |
Samples Display
