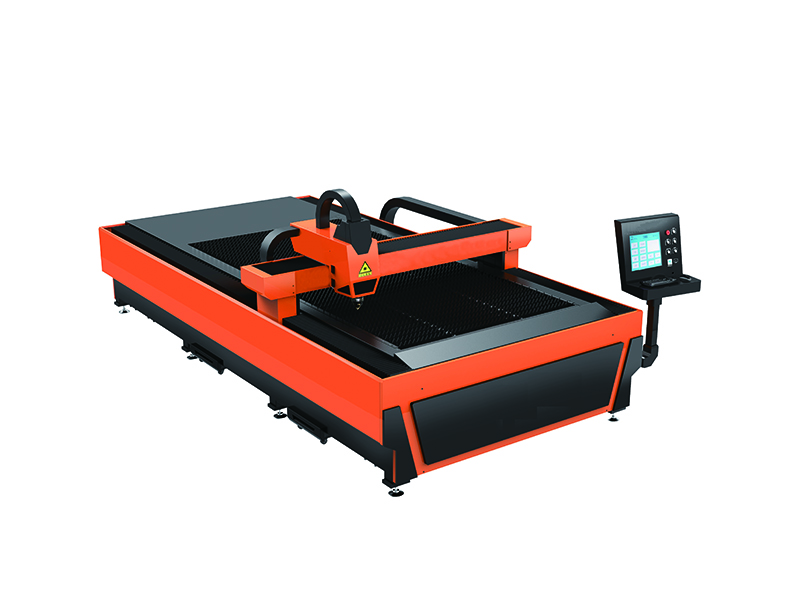

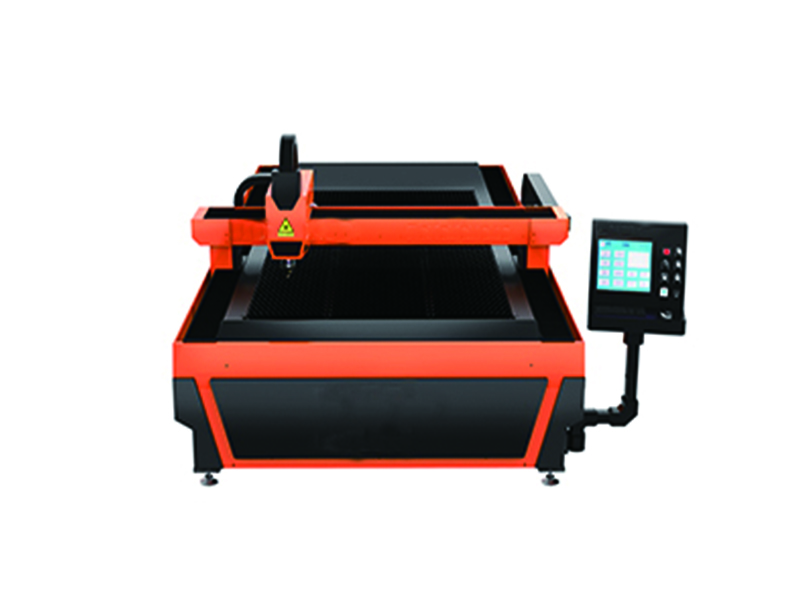

Fiber Laser Cutting Machine
FRB Series, offers high flexibility, high accuracy! Utilizing a gantry structure with precision dual rack& pinion transmission and AC servo motors providing customers with a high precision.
Tel.: +86-21-6034 3841 (UTC+08:00, 9:00~17:00) / +86 136 0179 0660 (24*7 Hours)
E-mail: info@ambermont.com Fax: +86-21-6766 9623 (UTC+08:00, 9:00~17:00)
- Product Introduction
- Technical Parameters
- Samples Display
Product Introduction
It offers high flexibility, easy materials handing and high accuracy for faster, more profitable parts. Utilizes a gantry structure with precision dual rack& pinion transmission and AC servo motors providing customers with a high precision, fast and reliable machine.
● Integrating ergonomic design, easy to operate;
● Professional laser cutting operation system with multi-language user interface , which greatly facilitates the operation;
● The whole frame, 600℃ heat treatment, 24 hours furnace cooling, 12 meter milling machine processing, ensure 20 years' working without any deformation;
● Apply the most mature laser cutting technology, high performance, fast response and maintenance free, qualified for ultra-high precision processing requirements;
● Adopts gantry-motion structure, linear guide, double driving transmission, AC servo motor and drives, vacuum system (both sides), etc. Imported high precision rack and pinion, smooth transmission, fast acceleration and high locating accuracy;
● Integrating ergonomic design, easy to operate;
● Professional laser cutting operation system with multi-language user interface , which greatly facilitates the operation;
● The whole frame, 600℃ heat treatment, 24 hours furnace cooling, 12 meter milling machine processing, ensure 20 years' working without any deformation;
● Apply the most mature laser cutting technology, high performance, fast response and maintenance free, qualified for ultra-high precision processing requirements;
● Adopts gantry-motion structure, linear guide, double driving transmission, AC servo motor and drives, vacuum system (both sides), etc. Imported high precision rack and pinion, smooth transmission, fast acceleration and high locating accuracy;
It's specially used for cutting 0.5~6mm carbon steel, 0.5~5mm stainless steel, galvanized steel, electrolytic zinc-coated steel, silicon steel, 0.5~3mm aluminium alloy, 0.5~2mm brass and other kinds of thin metal sheets.
Technical Parameters
| Models No. | FRB 3015 |
|---|---|
| Laser Rated Power | 300W/500W/700W |
| Wavelength | 1064nm |
| Processing Area | 1500*3000mm |
| X Axis Stoke | 1505mm |
| Y Axis Stoke | 3015mm |
| Z Axis Stoke | 200mm |
| X/Y Axis Max. Linked Speed | 60m/min |
| Max. Acceleration | 0.5G |
| X/Y Axis Positioning Accuracy | ±0.05mm |
| X/Y Axis Repeat Positioning Accuracy | ±0.03mm |
| Max. Workbench Load | 500KGS |
| Transmission | High-precision rack & pinion + double driving system |
| Rated Power | <10kW |
| Power Supply | 380V/50Hz |
| Total Weight | 2800KGS |
| Dimension (l*w*h) | 4435*2877*1540mm |
