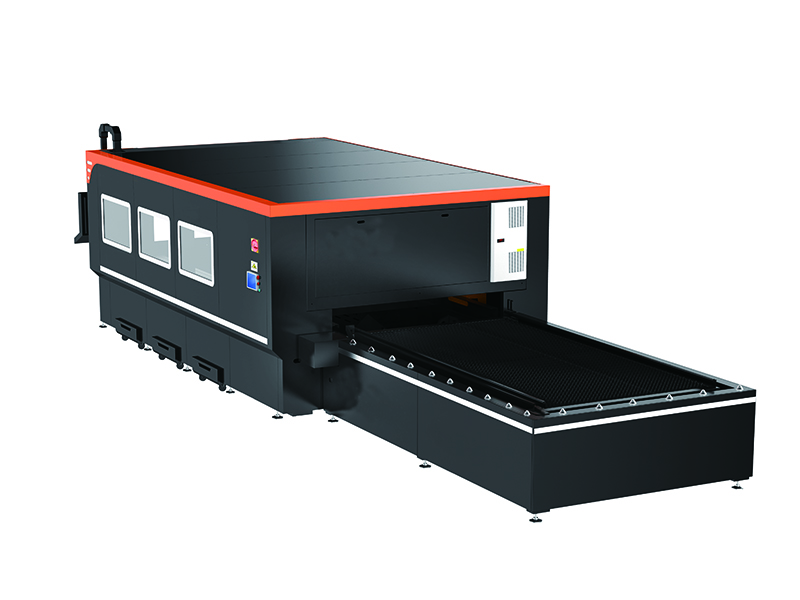

Fiber Laser Cutting Machine
FHA Series, the powerful cutting ability, fast cutting speed , superior stability and high performance are the key of AmberMont success.
Tel.: +86-21-6034 3841 (UTC+08:00, 9:00~17:00) / +86 136 0179 0660 (24*7 Hours)
E-mail: info@ambermont.com Fax: +86-21-6766 9623 (UTC+08:00, 9:00~17:00)
- Product Introduction
- Technical Parameters
- Samples Display
Product Introduction
AmberMont devote ourselves to researching & developing FEB series high power fiber laser cutting machine, integrating the fast-speed laser cutting technology and the top configuration in the industry, utilizing a gantry structure with precision dual rack& pinion drives and AC servo motors, etc. Providing customers with a high precision, fast and reliable machine.
● Comprehensive protection cover for the whole machine to reduce laser emissions;
● Professional laser cutting operation system with multi-language user interface , which greatly facilitates the operation;
● Interchangeable workbench with automatic switch function, save the material feeding and laying-off time, raise the laser cutting efficiency;
● The whole frame, 600℃ heat treatment, 24 hours furnace cooling, 12 meter milling machine processing, ensure 20 years' working without any deformation;
● Apply the most mature laser cutting technology, high performance, fast response and maintenance free, qualified for ultra-high precision processing requirements;
● Adopts gantry-motion structure, linear guide, double driving transmission, AC servo motor and drives, vacuum system (both sides), etc. Imported high precision rack and pinion, smooth transmission, fast acceleration and high locating accuracy;
● Comprehensive protection cover for the whole machine to reduce laser emissions;
● Professional laser cutting operation system with multi-language user interface , which greatly facilitates the operation;
● Interchangeable workbench with automatic switch function, save the material feeding and laying-off time, raise the laser cutting efficiency;
● The whole frame, 600℃ heat treatment, 24 hours furnace cooling, 12 meter milling machine processing, ensure 20 years' working without any deformation;
● Apply the most mature laser cutting technology, high performance, fast response and maintenance free, qualified for ultra-high precision processing requirements;
● Adopts gantry-motion structure, linear guide, double driving transmission, AC servo motor and drives, vacuum system (both sides), etc. Imported high precision rack and pinion, smooth transmission, fast acceleration and high locating accuracy;
It's specially used for cutting 0.5~14mm carbon steel, 0.5~5mm stainless steel, galvanized steel, electrolytic zinc-coated steel, silicon steel, 0.5~3mm aluminium alloy, 0.5~2mm brass and other kinds of thin metal sheets.
Technical Parameters
| Models No. | FHA 3015 |
|---|---|
| Laser Rated Power | 1000W/2000W |
| Wavelength | 1064nm |
| Processing Area | 1500*3000mm |
| X Axis Stoke | 1505mm |
| Y Axis Stoke | 3015mm |
| Z Axis Stoke | 200mm |
| X/Y Axis Max. Linked Speed | 100m/min |
| Max. Acceleration | 1.0G |
| X/Y Axis Positioning Accuracy | ±0.05mm |
| X/Y Axis Repeat Positioning Accuracy | ±0.03mm |
| Max. Workbench Load | 500KGS |
| Transmission | High-precision rack & pinion + double driving system |
| Rated Power | <20kW |
| Power Supply | 380V/50Hz |
| Total Weight | 8000KGS |
| Dimension (l*w*h) | 8830*2895*2300mm |
Samples Display
